The autoclave is the equipment which utilizes the pressure saturated steam for sterilizing goods quickly and reliable. It is a perfect equipment for sterilizing the medical equipment, dressings, glassware, liquor culture mediums, etc. We support OEM, and the MOQ is 1.
Volume :
65LItem No :
BXM-65FEOrder(MOQ) :
ONEPayment :
T/TProduct Origin :
CHINAPower Supply :
220±10%V, 50±2%HzMax. Working Temperature :
135°CInternal Dimensions [mm] :
Ø380×610Net Weight :

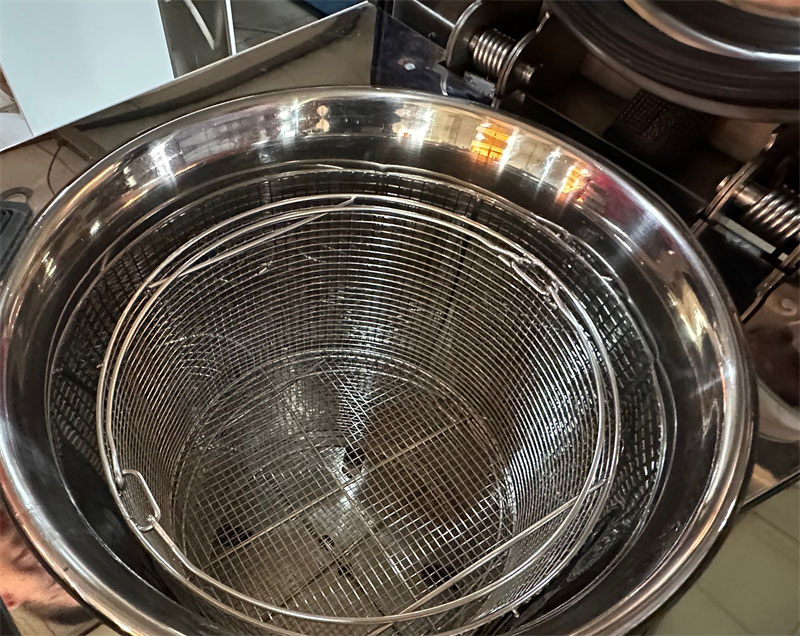

85kgBaskets[mm] :
2BRIGHT II operating system,7-inch HD touch screen with adjustable angle,real time display of parameters;
Foot operated door opening structure with dual protection of self-locking and interlocking;
The system can record alarms, historical data, operation logs, and USB flash drive export backups;
Standard 26 sterilization procedures+4 melting and insulation procedures;
Equipped with boiling point setting function;
One click exhausts and drainage;
With reservation function;
Positive pressure pulse, 6 level cold air discharge procedure;
After sterilization, the 6-stage pressure relief rate is optional;
Water level detection + anti dry burning low water level protection function;
Fault detection function, over temperature shutdown protection, water cut-off protection, overpressure self-relief protection, anti-hot protection, overload protection;
Short circuit protection, leakage protection, independent electronic overvoltage protection and other multiple security;
Standard sample temperature probe;
One 485 data port, one USB port and one G1/2A verification port are standard.
Optional :biosafety filter, verification lead, embedded printer.
Product Details
| Model | BXM-65FE |
| Volume [L] | 65 |
| Drum diameter[mm] | 400 |
| Power Supply [V, Hz] | 220±10%, 50±2% |
| Environment Temp. [°C] | 5~40 |
| Environment Humidity [%RH] | 20~80 |
| Power [kW] | 2.7 |
| Sterilization Temp. [°C] | 105~135 |
| Temp. Fluctuation [°C] | ˂±1 |
| Temp. Uniformity[°C] | ≦±1 |
| Melting Temp. [°C] | 60~100 |
| Heat Preservation Temp. [°C] | 40~60 |
| Sterilization Timer Range [min] | 0~240 |
| Melting Timer Range [min] | 0~6000 |
| Heat Preservation Timer Range [min] | 0~6000 |
| Reservation Range [min] | Appointment by Date |
| Design Pressure [MPa] | 0.39 |
| Working Pressure [MPa] | 0.24 |
| Housing Dimensions W×D×H [mm] | 605*513*915 |
| Cavity size [mm] | Ø380*610 |
| Basket Dimensions [mm] | Ø360*250 |
| Number of Baskets [pc] | 2 |
| Net Weight [kg] | 85 |
| Gross Weight [kg] | 98 |
| Package Size [mm] | 630*740*1180 |
