 1.0m³ Horizontal Pressure Steam Sterilizer
Microcomputer Controlled Horizontal Autoclave
Shelves of Sterilization
Pressure Gauge

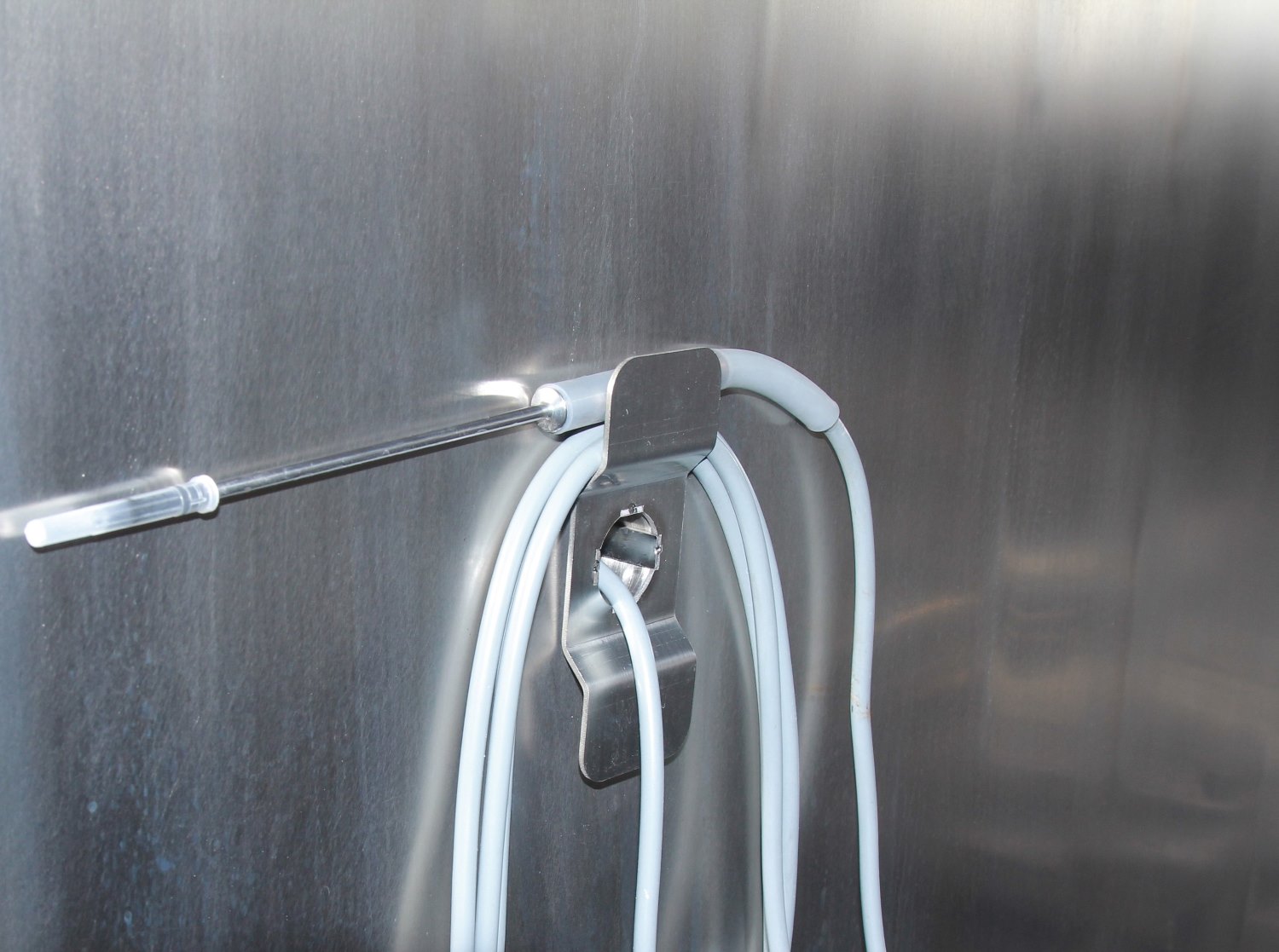

Temperature Probe
Trolley
Back of the Autoclave

1.0m³ Horizontal Pressure Steam Sterilizer

The autoclave is the equipment which utilizes the pressure saturated steam for sterilizing goods quickly and reliable. It is a perfect equipment for sterilizing the medical equipment, dressings, glassware, liquor culture mediums, etc. We support OEM.

  • Volume :

    1.2m³

  • Item No :

    BXW-1.0JDM

  • Order(MOQ) :

    ONE

  • Payment :

    T/T

  • Product Origin :

    CHINA

  • Power Supply :

    380V,50Hz

  • Max. Working Temperature :

    139℃

  • Internal Dimensions [mm] :

    1800×610×910
Inquire Now
Product categories
New Products
Product Description
AISI316L/304 (material proof can be provided) is used in the inner chamber, jacket and indoor pipeline of the sterilizer to ensure the reliable quality and durability of the main body of the sterilizer;

The main body is manufactured using advanced welding technology and testing means. The inner surface: electrolytic polishing, pipeline electrolytic polishing, which meets the process requirements of food grade;

The whole sterilization process is automatically controlled by microcomputer, which has a high degree of automation. The color touch screen can dynamically display the working temperature, pressure, time and sterilization stage Parameter, operation is more intuitive and convenient;

The equipment is equipped with multiple sterilization procedures (solid, liquid, metal, fabric, B-D test, etc.), and the working parameters can be set according to the actual situation of the user; meanwhile vacuum detection, vacuum leakage rate is less than 0.13Kpa/min;

Multi-channel steam intake, multi-stage heating, more uniform temperature distribution, lower steam
energy consumption;

Four-sided V-shaped cavity base design, excellent drainage performance.

Notes: Self-produced steam sterilizer with steam generator and water pump, the device has the following functions:

The function of automatic water intake and replenishment of the water pump makes the water level in the steam generator controlled within a reasonable range.

When the water level in the steam generator reaches the lowest value, the power supply of the electric heat pipe can be cut offff and the alarm will be given;

The pressure controller is used to control the pressure in the steam generator, and the safety valve is used to protect the overpressure.

Product Details
Model BXW-1.0JDM
Volume [m³] 1.2
Sterilization Size [mm]
1800×610×910
Power Supply [V, Hz] 380, 50
Steam Source External
Inner Cavity Design Pressure -0.1~ 0.3MPa
Inner Cavity Work Pressure
 -0.1/0.25MPa
Jacket Design Pressure
 0.3MPa
Jacket Work Pressure 0.25Mpa
Inner Cavity Water Pressure test 0.39Mpa
Jacket Water Pressure Test 0.52Mpa
Design Temp. 144℃
Sterilization Temp. 105℃~139℃
Temp. Uniformity ±1℃
Limited Vacuum -94.3KPa
Leakage Rate
 ≤1.3KPa-10min
Temp. Difference(External Temp. & Ambient Temp.)
15℃
Power [kW]
 2.4
Housing Dimensions [mm]
2060×1280×1940
Gross weight  [kg] 1600
Package size  [mm]

-



Product Display

Horizontal Pressure Steam Sterilizer


Packaging & Shipping

Packaging Details

1.Standard exporting package.
2.Cartons packaged with wooden pallet.
3.As so customized specifications such as logo or others.
Delivery Time
20 days

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Autoclave,Incubator,Drying oven,Test Chamber,Clean bench and other laboratory equipment.

3. why should you buy from us not from other suppliers?
We are a professional manufacturer of laboratory equipment and life science instruments. We have 25 years of design and R & D experience and focus on control solutions of temperature and humidity.

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Type: T/T;
