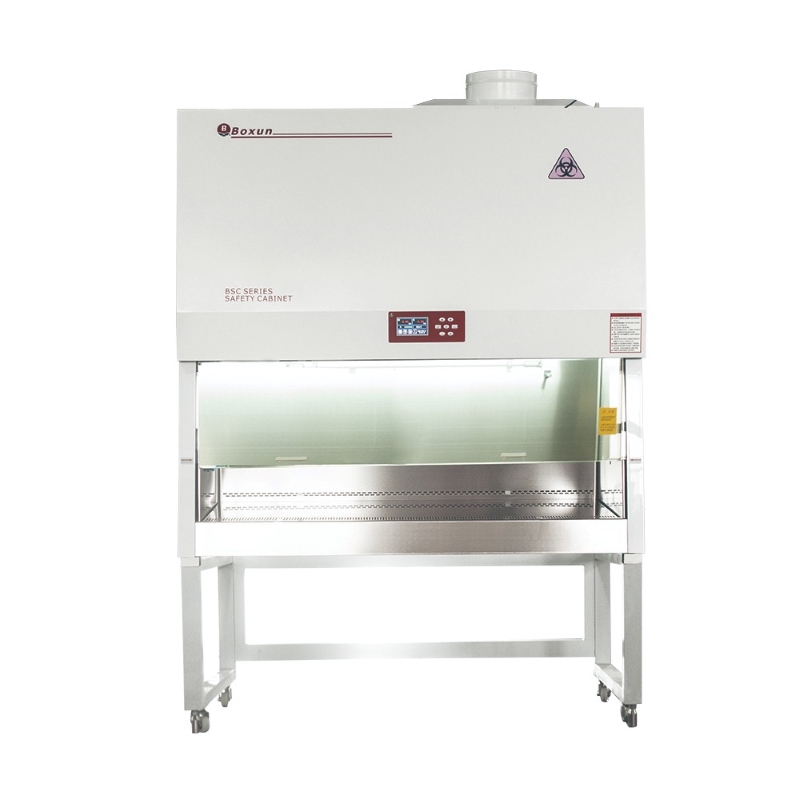

The biosafety cabinet is an air purification negative pressure safety device that can prevent the aerosol escape of some dangerous or unknown biological particles in the process of experimental operation. Its working principle is mainly to pump the air in the cabinet outwards, so that the cabinet maintains a negative pressure state, and protects the staff through vertical airflow. We support OEM.
Item No :
BSC-1060B2Order(MOQ) :
ONEPayment :
T/TProduct Origin :
CHINAPower Supply :
220±10V, 50/60HzInternal Dimensions [mm] :
1060×580×595Net Weight :
198kgProduct Description

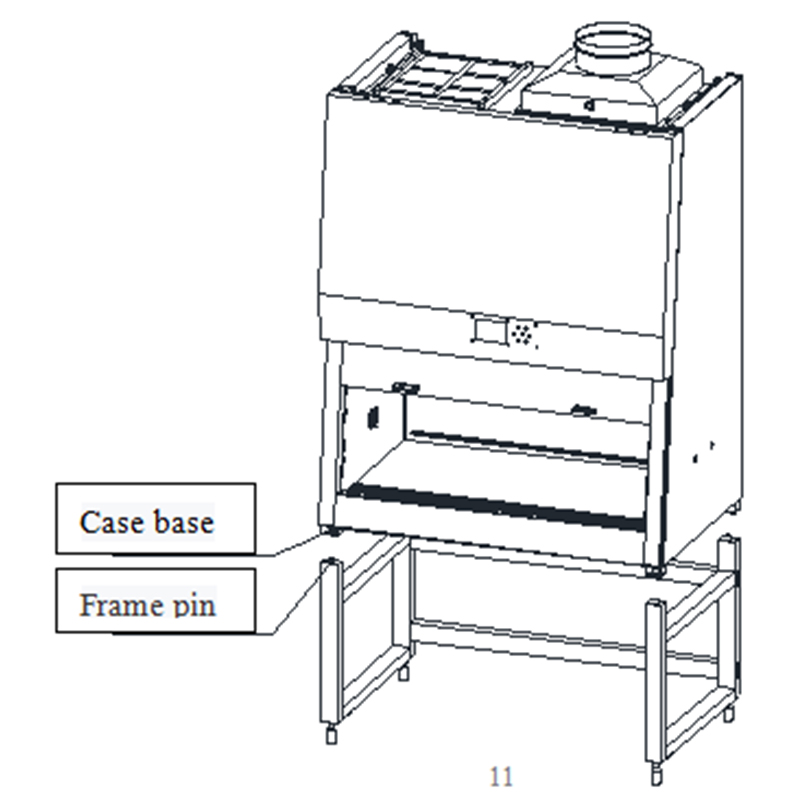

Split style structure, the demountable rack has moveable castors and balance adjusting screw rods;
Air clean intelligent control system, color high-definition LCD display screen, real-time display of inflow/descent wind speed value, filter lifespan value, working status of fan, lighting, UV, power interface, and display of abnormal prompts.
Equipped with calendar and time display, as well as UV sterilization appointment and timing functions. Intelligent constant wind speed technology, using high-performance wind speed sensors, ultraviolet sterilization lamps, and lighting interlocking protection.
Equipped with front window limit protection, using imported brand HEPA (ISO level 5) high-efficiency filter, capable of 0.3μm. The filtering efficiency of dust particles can reach over 99.995% (ULPA (ISO4 level) high-efficiency filter is optional, and the filtering effect can reach 99.9995%).
The preset filter failure and damage alarm technology, the device has low energy consumption standby mode.
The visual front window is designed with a 10° tilt angle that meets ergonomic principles.
The interior wall of the studio is designed with SUS304 stainless steel as a whole, removable SUS304 brushed stainless steel operating table.
With standard anti splash AC socket and reserved water and air interfaces.
Equipped with exhaust hood and exhaust duct.
Installation note:
1. The environment should meet the requirements of BSL-1 to BSL-3 biological laboratories, and maintain the corresponding constant temperature and humidity conditions and cleanliness;
2. The height of the room should not be less than 2.8 meters, and the room area used by a single instrument should not be less than 15m2.
3. Power supply: AC 220V, 50/60Hz, external power socket capacity should be greater than 16A.

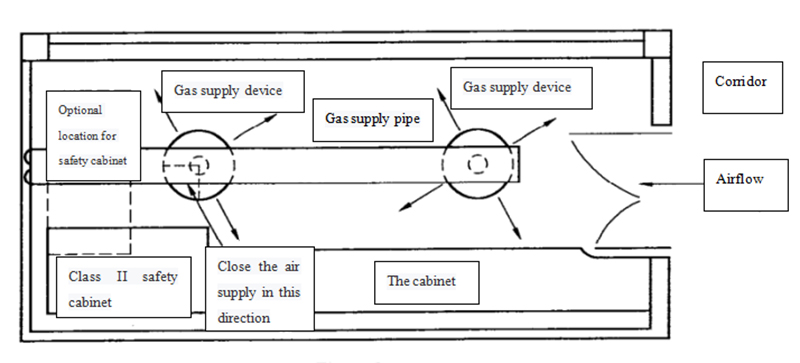

4. There should be air replenishment device in the room to ensure sufficient indoor gas and circulation.

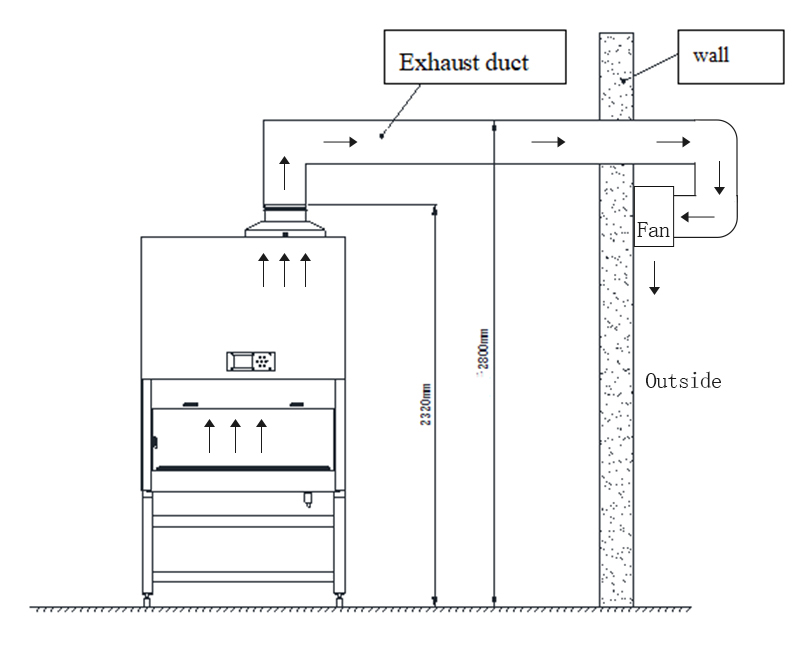

5. The wall should be drilled with a diameter of about 260~ 270 to install the fan.
6. Install the fan outdoors and ensure that it is not wet.
7. The distance between the fan and the safety cabinet shall not exceed 4 meters, and the pipes shall be unblocked, otherwise the wind speed will be abnormal.
Product Details
| Model | BSC-1060B2 |
| Applicable Number of Person | 1 |
| Cleanliness Class | 100 |
| Inflow Air Velocity [m/s] | 0.55 |
| Down Airflow Velocity [m/s] | 0.35 |
| Noise [dB] | ≤67 |
| Vibration Half Peak Value [µm] | ≤5 |
| Illuminance [Lux] | ≥650 |
| Ambient Temperature [°C] | 10~30 |
| Relative Humidity at 25°C [%] | ≤70 |
| Atmospheric Pressure [Pa] | 80~105 |
| Internal Dimensions W×D×H [mm] | 1060×580×595 |
| Housing Dimensions W×D×H [mm] | 1200×770×2320 |
| Height of Rack [mm] | 630 |
| Dimensions of Inflow HEPA [mm] | 1095×475×70 |
| Dimensions of Exhaust HEPA [mm] | 500×460×70 |
| Power and Number of Lamp [W/pc] | 20 / 1 |
| Power and Number of UV Light [W/pc] | 20 / 1 |
| Power [W] | 1800 |
| Power Supply [V, Hz] | 220±10, 50/60 |
| Net Weight [kg] | 198 |
| Gross Weight [kg] | 236 |
| Package Size [mm] | 1460*970*1880 |
Product Display
It is generally used for biological experiments without direct harm to the human body and provides a local purification working environment for biological experiments. We support OEM.
